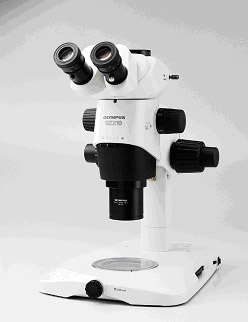

Natural View - original shape, authentic colors The DFPlan objective series is showing the shape of the specimen as it is, without any distortion. Furthermore the careful selection of lens surface coating and glass materials in the entire optical system makes it possible to observe and document specimens in their original, authentic colors. These features make the SZX10 the ideal choice for any measuring and verification task.
|
|
|
Automation
The SZX10 motorized focus drive (optional) is making the digital documentation with extended focal imaging (EFI) efficiently and fully automatic. This even allows creation of pseudo 3D images, closing the gap between documentation and what the eyes have seen before through the stereoscopic lightpath. To facilitate automated inspections the Olympus MicroSuite imaging software family offers all the tools required from simple 2D measurements up to complex phase analysis in an easy to use environment.
|
|
|
Reliability and Repeatability
Many imaging or measuring tasks require the use of the same zoom magnification setting to ensure consistent and comparable results. The integrated 11 position click-stop provides quick and easy access to this important function. In addition the SZX10 allows the quick change between stereoscopic view and axial light path for the camera. The advantage of the axial light path setting is that measurements taken with the camera are reliable and precise in all directions making results independent from the orientation of the sample under the microscope.
|
|
|
Ultimate visual comfort
The advanced Olympus Comfort View eyepieces on the SZX2 stereo microscopes enable a significantly larger range of eye movement for viewing the 3D image, making both short and long term use much more comfortable. This also makes it easier to form the stereo image, resulting in reduced occurrence of eyestrain.
|
|
|
Ergonomic
Olympus believes that ergonomy is not an add-on and therefore each microscope is designed with the user in mind. As a result, all controls are easy to use and features like ComfortView and the low stage height, greatly reduce sources of stress. Olympus can even provide an observation tube capable of adjustment between 5° and 45° (to the horizontal), for situations where the stereo microscope is used at many different heights.
|
